Part#: B101

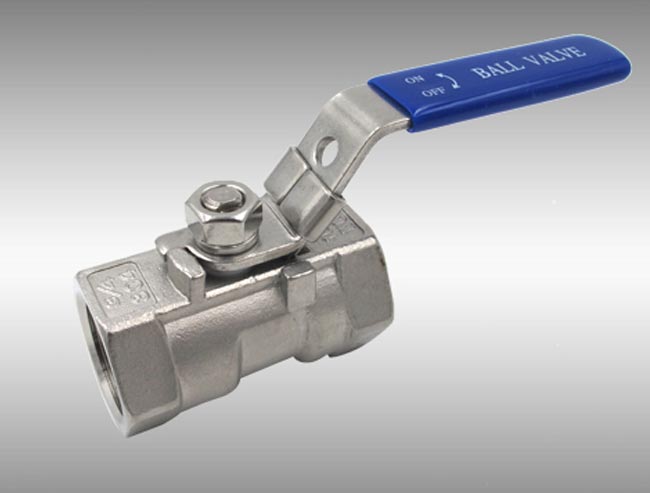

Product Name: 1-PC Ball Valve
Material: SS 304, SS 316
Coonection: Thread
Medium: Water, Oil & Gas
FEATURES:
Working Pressure: 1000PSI/PN63
Reduce Port
Investment Casting
Blow-out Proof Stem
Locking Device Handle(Option)
PED97/23/EC(CE0035)Approved
Casting Approved AD2000-W0
Thread: NPT, BSPT, DIN2999/259, ISO228-1
Inspection Testing: API598, EN12266

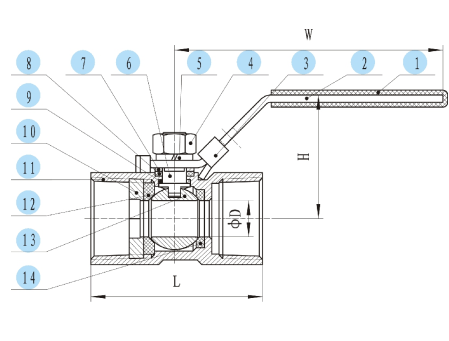

| DIMENSION TABLE | ||||||||||
| SIZE ITEM | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" |
| D | 5 | 7 | 9.2 | 12.5 | 15 | 20 | 25 | 32 | 38 | 50 |
| H | 33 | 35 | 40 | 44 | 51 | 57 | 64 | 68 | 85 | 90 |
| W | 71 | 93 | 95 | 95 | 113 | 113 | 141 | 141 | 189 | 189 |
| L | 39 | 44 | 55 | 59 | 69 | 77 | 81 | 97 | 128 | 153 |
| MATERIAL LIST | ||||||||||
| ITEM | DESCRIPTION | MATERIAL | ||||||||
| 1 | PLASTIC COVER | PLASTIC | ||||||||
| 2 | HANDLE | SUS304 | ||||||||
| 3 | LOCKING | SUS304 | ||||||||
| 4 | STEM NUT | SUS304 | ||||||||
| 5 | SPRING WASHER | SUS304 | ||||||||
| 6 | STEM | SUS304 | ||||||||
| 7 | PACK RING | SUS304 | ||||||||
| 8 | STEM PACKING | PTFE | ||||||||
| 9 | THRUST WASHER | PTFE | ||||||||
| 10 | CAP | CF8/CF8M | ||||||||
| 11 | BODY | CF8/CF8M | ||||||||
| 12 | BALL SEAT(A) | RPTFE | ||||||||
| 13 | BALL | CF8/CF8M | ||||||||
| 14 | BALL SEAT(B) | RPTFE | ||||||||
