Part#: B211

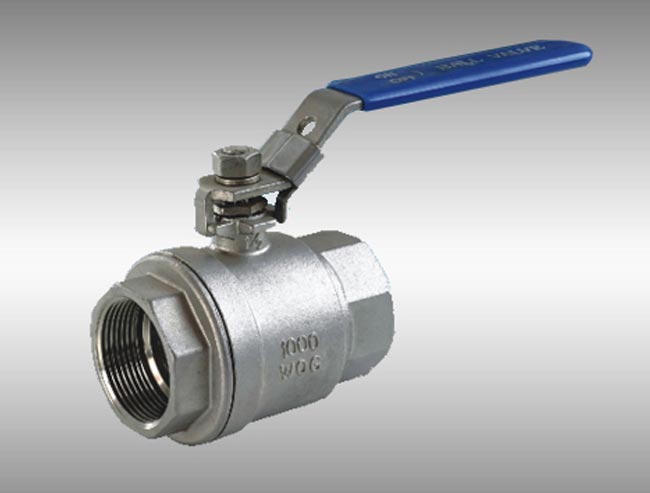

Product Name: 2-PC Light Duty Ball Valve
Material: SS 304, SS 316
Coonection: Thread
Medium: Water, Oil & Gas
FEATURES:

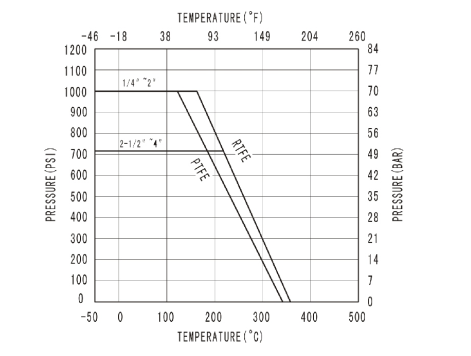

Working Pressure: 1000PSI/PN63
Full Port
Investment Casting
Blow-out Proof Stem
Locking Device Handle(Option)
PED97/23/EC(CE0035)Approved
Casting Approved AD2000-W0
Thread: NPT, BSPT, DIN2999/259, ISO228-1
Inspection Testing: API598, EN12266

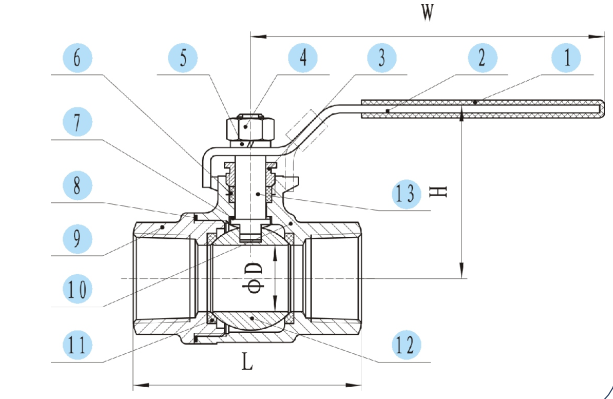

| DIMENSION TABLE | |||||||||||
| SIZE ITEM | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" | 4" |
| D | \ | \ | 15 | 20 | 25 | 32 | 38 | 50 | \ | \ | \ |
| H | \ | \ | 50 | 63 | 65 | 79 | 83 | 97 | \ | \ | \ |
| W | \ | \ | 103 | 133 | 133 | 153 | 153 | 188 | \ | \ | \ |
| L | \ | \ | 58 | 65 | 77 | 90 | 98 | 121 | \ | \ | \ |
| MATERIAL LIST | ||||||||||
| ITEM | DESCRIPTION | MATERIAL | ||||||||
| 1 | PLASTIC COVER | PLASTIC | ||||||||
| 2 | HANDLE | SUS304 | ||||||||
| 3 | GLAND NUT | SUS304 | ||||||||
| 4 | STEM NUT | SUS304 | ||||||||
| 5 | THRUST WASHER | SUS304 | ||||||||
| 6 | STEM PACKING | PTFE | ||||||||
| 7 | STEM SEAL | PTFE | ||||||||
| 8 | BODY SEAL | PTFE | ||||||||
| 9 | CAP | CF8/CF8M | ||||||||
| 10 | BODY | CF8/CF8M | ||||||||
| 11 | SEAT | RPTFE | ||||||||
| 12 | BALL | CF8/CF8M | ||||||||
| 13 | STEM | SUS304 | ||||||||
