Part#: B241

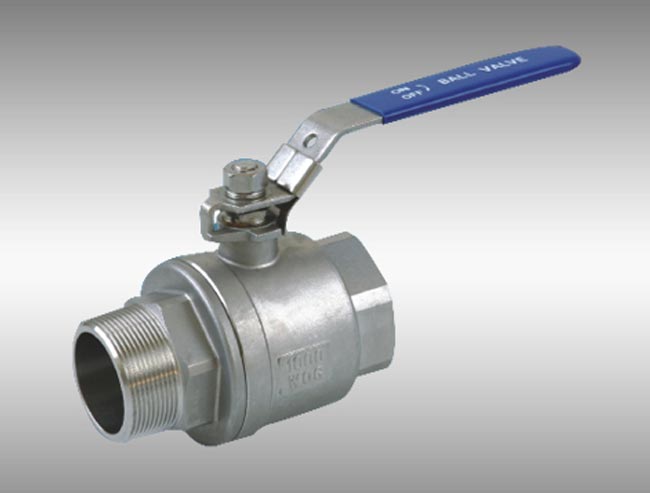

Product Name: 2-PC Ball Valve(M/F)
Material: SS 304, SS 316
Coonection: Thread
Medium: Water, Oil & Gas
FEATURES:

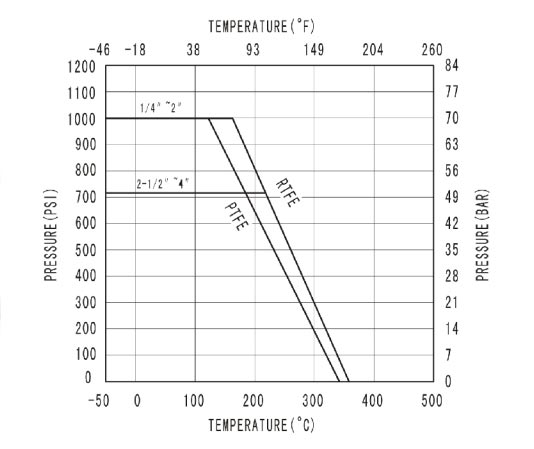

Working Pressure: 1000PSI/PN63
Full Port
Investment Casting
Blow-out Proof Stem
Locking Device Handle(Option)
PED97/23/EC(CE0035)Approved
Casting Approved AD2000-W0
Thread: NPT, BSPT, DIN2999/259, ISO228-1
Inspection Testing: API598, EN12266

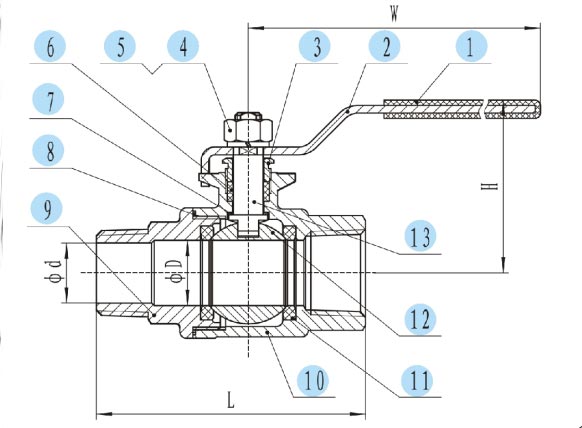

| DIMENSION TABLE | ||||||||||
| SIZE ITEM | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" |
| D | \ | 12.5 | 15 | 20 | 25 | 32 | 38 | 50 | \ | \ |
| d | \ | 10.5 | 13.6 | 18.2 | 23 | 31 | 36 | 48 | \ | \ |
| W | \ | 103 | 103 | 126 | 144 | 144 | 190 | 190 | \ | \ |
| H | \ | 48 | 50 | 57 | 67 | 72 | 93 | 100 | \ | \ |
| L | \ | 60 | 78.5 | 88.5 | 100 | 110.5 | 121 | 141.5 | \ | \ |
| MATERIAL LIST | ||||||||||
| ITEM | DESCRIPTION | MATERIAL | ||||||||
| 1 | PLASTIC COVER | PLASTIC | ||||||||
| 2 | HANDLE | SUS304 | ||||||||
| 3 | GLAND NUT | SUS304 | ||||||||
| 4 | STEM NUT | SUS304 | ||||||||
| 5 | THRUST WASHER | SUS304 | ||||||||
| 6 | STEM PACKING | PTFE | ||||||||
| 7 | STEM SEAL | PTFE | ||||||||
| 8 | BODY SEAL | PTFE | ||||||||
| 9 | CAP | CF8/CF8M | ||||||||
| 10 | BODY | CF8/CF8M | ||||||||
| 11 | SEAT | RPTFE | ||||||||
| 12 | BALL | CF8/CF8M | ||||||||
| 13 | STEM | SUS304 | ||||||||
