Part#: B301M

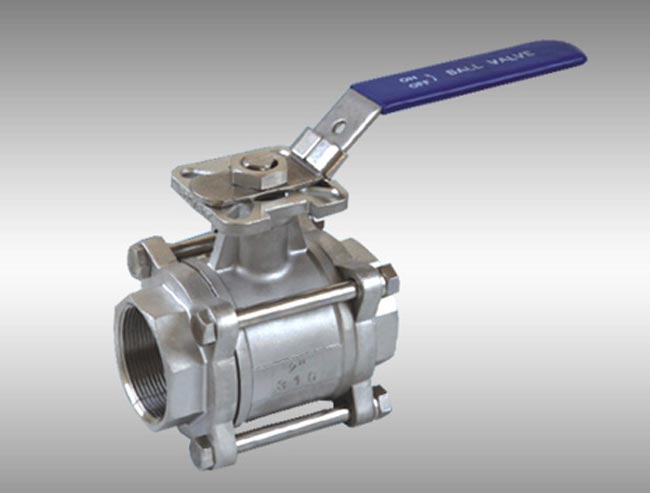

Product Name: 3-PC Thread Ball Valve With Mounting Pad
Material: SS 304, SS 316
Coonection: Thread
Medium: Water, Oil & Gas
FEATURES:
Working Pressure: 1000PSI/PN63
Full Port
Investment Casting
Blow-out Proof Stem
ISO5211 Mounting Pad
Locking Device Handle
PED97/23/EC(CE0035)Approved
Casting Approved AD2000-W0
Thread: NPT, BSPT, DIN2999/259, ISO228-1
Inspection Testing: API598, EN12266

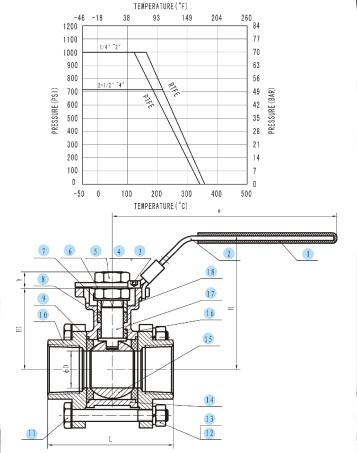

| DIMENSION TABLE | |||||||||||
| SIZE ITEM | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" | 4" |
| D | 11 | 12.5 | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 76 | 94 |
| H | 69 | 69 | 72 | 78 | 90 | 95 | 105 | 122 | 155 | 164 | 164 |
| W | 140 | 140 | 140 | 140 | 162 | 162 | 188 | 188 | 233 | 233 | 233 |
| H1 | 38.4 | 38.4 | 42 | 48 | 55 | 60 | 70 | 85 | 109 | 118 | 115.5 |
| h | 9 | 9 | 9 | 9 | 11 | 11 | 14 | 14 | 20 | 20 | 20 |
| 〼 | 9 | 9 | 9 | 9 | 11 | 11 | 14 | 14 | 17 | 17 | 17 |
| ISO5211 | F03 | F03 | F03 | F03 | F04 | F04 | F05 | F05 | F07 | F07 | F07 |
| F04 | F04 | F04 | F04 | F05 | F05 | F07 | F07 | F10 | F10 | F10 | |
| L | 64 | 64 | 72 | 80 | 85 | 105 | 113 | 132 | 170 | 186 | 226 |
| MATERIAL LIST | ||||||||||
| ITEM | DESCRIPTION | MATERIAL | ||||||||
| 1 | PLASTIC COVER | PLASTIC | ||||||||
| 2 | HANDLE | SUS304 | ||||||||
| 3 | BOLT | SUS304 | ||||||||
| 4 | NUT | SUS304 | ||||||||
| 5 | STEM NUT | SUS304 | ||||||||
| 6 | PACKING RING | SUS304 | ||||||||
| 7 | THRUST WASHER | SUS304 | ||||||||
| 8 | STEM PACKING | PTFE | ||||||||
| 9 | BODY SEAL | PTFE | ||||||||
| 10 | CAP | CF8/CF8M | ||||||||
| 11 | BOLT | SUS304 | ||||||||
| 12 | THRUST WASHER | SUS304 | ||||||||
| 13 | NUT | SUS304 | ||||||||
| 14 | BODY | CF8/CF8M | ||||||||
| 15 | BALL | CF8/CF8M | ||||||||
| 16 | STEM SEAL | PTFE | ||||||||
| 17 | STEM | SUS304 | ||||||||
| 18 | GLAND RING | SUS304 | ||||||||
