Part#: C101

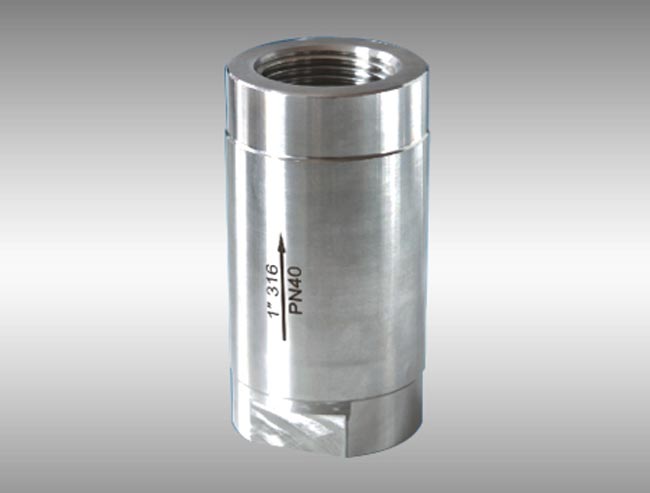

Product Name: 1-PC Spring Vertical Check Valve
Material: SS 304, SS 316
Coonection: Thread
Medium: Water, Oil & Gas
FEATURES:
Working Pressure: 800PSI/PN40
Investment Casting
Sanitary Design
PED97/23/EC(CE0035)Approved
Casting Approved AD2000-W0
Thread: NPT, BSPT, DIN2999/259, ISO228-1
Inspection Testing: API598, EN12266

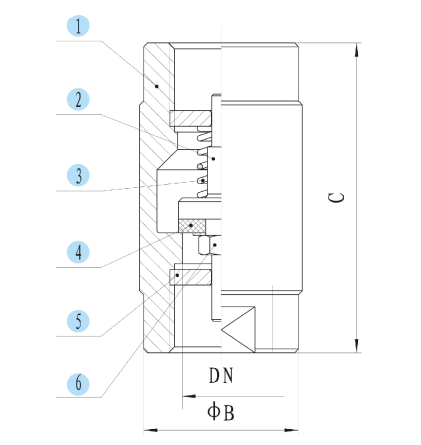

| DIMENSION TABLE | |||||||||||
| SIZE ITEM | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" | 4" |
| DN | 8 | 10 | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 76 | \ |
| B | 21 | 24 | 31 | 38 | 48 | 52 | 60 | 74 | 94 | 116 | \ |
| L | 60 | 65 | 80 | 80 | 80 | 95 | 110 | 118 | 135 | 145 | \ |
| MATERIAL LIST | ||||||||||
| ITEM | DESCRIPTION | MATERIAL | ||||||||
| 1 | BODY | CF8/CF8M | ||||||||
| 2 | STEM | CF8/CF8M | ||||||||
| 3 | SPRING | SUS304/SUS316 | ||||||||
| 4 | SEAT | PTFE | ||||||||
| 5 | STOPPER | SUS304/SUS316 | ||||||||
| 6 | NUT | SUS304 | ||||||||
