Part#: C501
Product Name: Y-Spring Check Valve
Material: SS 304, SS 316
Coonection: Thread
Medium: Water, Oil & Gas
FEATURES:
Working Pressure:800PSI/PN40
Investment Casting
PED97/23/EC(CE0035)Approved
Casting Approved AD2000-W0
Thread: NPT, BSPT, DIN2999/259, ISO228-1
Inspection Testing: API598, EN12266

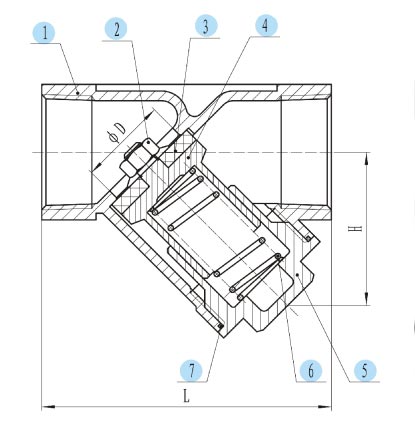

| DIMENSION TABLE | ||||||||||
| SIZE ITEM | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" |
| D | 12 | 12 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 76 |
| H | 35 | 35 | 35 | 45 | 57 | 58 | 66 | 78 | 102 | 116 |
| L | 65 | 65 | 65 | 80 | 90 | 105 | 120 | 138 | 183 | 198 |
| MATERIAL LIST | ||||||||||
| ITEM | DESCRIPTION | MATERIAL | ||||||||
| 1 | BODY | CF8/CF8M | ||||||||
| 2 | NUT | SUS304 | ||||||||
| 3 | DISC SEAT | PTFE | ||||||||
| 4 | DISC | CF8/CF8M | ||||||||
| 5 | BONNET | CF8/CF8M | ||||||||
| 6 | SPRING | SUS304 | ||||||||
| 7 | GASKET | PTFE | ||||||||
