Part#: B404MA

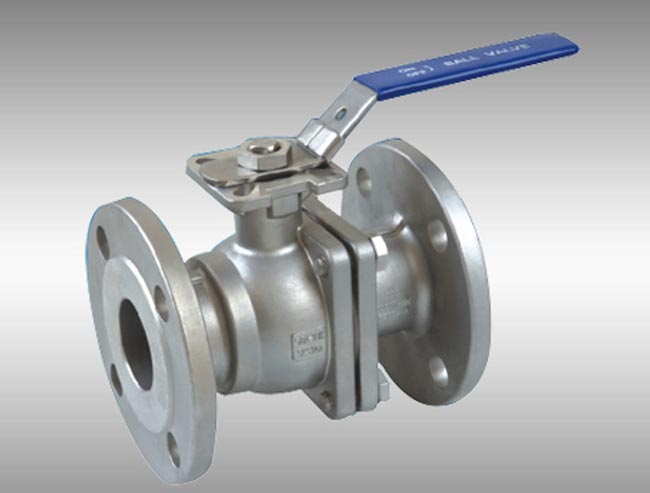

Product Name: 2-PC Flanged Ball Valve With Mounting Pad(ANSI)
Material: SS 304, SS 316
Coonection: Flange
Medium: Water, Oil & Gas
FEATURES:
ANSI CLASS 150
Full Port
Investment Casting
Blow-out Proof Stem
ISO5211 Mounting Pad
PED97/23/EC(CE0035)Approved
Casting Approved AD2000-W0
Design: ASME B16.34
End Flange: ASME B16.5
Inspection Testing: API598

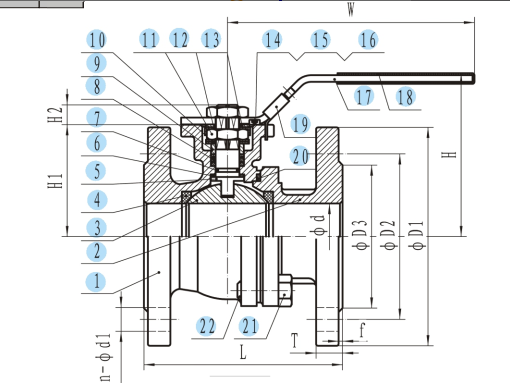

| DIMENSION TABLE | |||||||||||
| SIZE ITEM | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" | 4" | 5" | 6" |
| φd | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 76 | 100 | 120 | 150 |
| L | 108 | 117 | 127 | 140 | 165 | 178 | 190 | 203 | 229 | 356 | 394 |
| T | 9.7 | 10.5 | 11.2 | 12.7 | 14.7 | 16.3 | 17.9 | 19.5 | 24.3 | 24 | 25.4 |
| f | 1.6 | 1.6 | 1.6 | 1.6 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| D1 | 89 | 98.6 | 108 | 117 | 125 | 150 | 180 | 190 | 230 | 254 | 279.4 |
| D2 | 60.5 | 70 | 79.2 | 88.9 | 98.4 | 120.7 | 139.7 | 152.4 | 190.5 | 216 | 241.3 |
| D3 | 35 | 43 | 51 | 63.5 | 73.2 | 92 | 104.7 | 127 | 157.2 | 186 | 216 |
| n | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | 8 | 8 |
| φd1 | 16 | 16 | 16 | 16 | 16 | 19 | 19 | 19 | 19 | 22.4 | 22.4 |
| H1 | 48.3 | 53 | 58.5 | 71 | 76 | 84.5 | 101.5 | 111.5 | 141 | 160 | 184 |
| H2 | 9 | 9 | 11 | 11 | 14 | 14 | 17 | 17 | 22 | 40.5 | 40.5 |
| H | 80 | 85 | 95 | 108 | 114 | 124 | 148 | 158 | 191 | 242 | 270 |
| W | 140 | 140 | 160 | 160 | 185 | 185 | 230 | 230 | 230 | 500 | 500 |
| K | M12X1.5 | M12X1.5 | M14X1.5 | M14X1.5 | M18X1.5 | M18X1.5 | M22X1.5 | M22X1.5 | M28X2 | M36X2 | M36X2 |
| P | 9 | 9 | 11 | 11 | 14 | 14 | 17 | 17 | 22 | 27 | 27 |
| A1 | 3 | 3 | 3 | 3 | 3.5 | 3.5 | 4.5 | 4.5 | M12 | M12 | |
| A2 | 3 | 3 | 3.5 | 3.5 | 3.5 | 4.5 | 4.5 | 5.5 | 5.5 | M10 | |
| B1 | 36 | 36 | 42 | 42 | 50 | 50 | 70 | 70 | 125 | 125 | |
| B2 | 42 | 42 | 50 | 50 | 70 | 70 | 102 | 102 | 102 | ||
| MATERIAL LIST | ||||||||||
| ITEM | DESCRIPTION | MATERIAL | ||||||||
| 1 | BODY | CF8/CF8M | ||||||||
| 2 | CAP | CF8/CF8M | ||||||||
| 3 | BALL | CF8/CF8M | ||||||||
| 4 | BALL SEAT | RPTFE | ||||||||
| 5 | STEM | SUS304 | ||||||||
| 6 | STEM PACKING | PTFE | ||||||||
| 7 | O-RING | NBR | ||||||||
| 8 | V-RING PACKING | PTFE | ||||||||
| 9 | GLAND | SUS304 | ||||||||
| 10 | BELIEVILLE WASHER | SUS301 | ||||||||
| 11 | NUT | SUS304 | ||||||||
| 12 | THRUST WASHER | SUS304 | ||||||||
| 13 | WASHER | SUS304 | ||||||||
| 14 | STOP BOLT | SUS304 | ||||||||
| 15 | NUT | SUS304 | ||||||||
| 16 | WASHER | SUS304 | ||||||||
| 17 | HANDLE | SUS304 | ||||||||
| 18 | PALSTIC COVER | PLASTIC | ||||||||
| 19 | LOCKING | SUS304 | ||||||||
| 20 | BODY GASKET | PTFE | ||||||||
| 21 | NUT | SUS304 | ||||||||
| 22 | BOLT | SUS304 | ||||||||
| 23 | TRIANGLE STOPPER | SUS304 | ||||||||
| 24 | HANDLE ADAPTER | SUS304 | ||||||||
| 25 | SET SCREWED | SUS304 | ||||||||
| 26 | HANDLE | SUS304 | ||||||||
| 27 | PLASTIC COVER | PLASTIC | ||||||||
