Part#: B404D

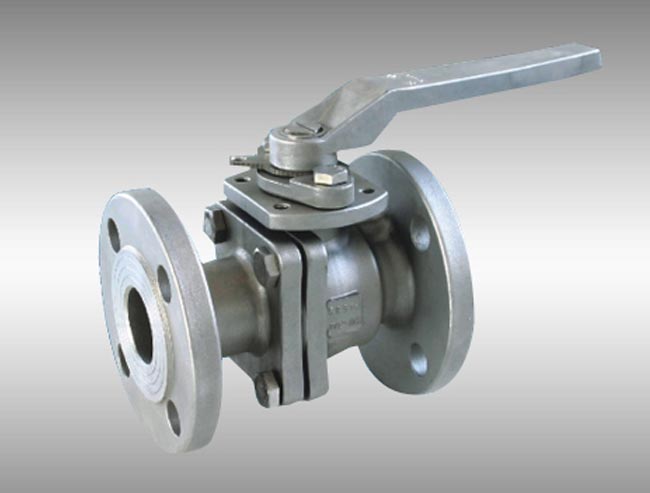

Product Name: 2-PC Flanged Ball Valve(DIN)
Material: SS 304, SS 316
Coonection: Flange
Medium: Water, Oil & Gas
FEATURES:
DIN PN10-40
Full Port
Investment Casting
Blow-out Proof Stem
ISO5211 Mounting Pad
PED97/23/EC(CE0035)Approved
Casting Approved AD2000-W0
Design: DIN3357,En12516
End Flange:DIN2501, PN10-40
Face to Face: DIN3202-F4
Inspection Testing: DIN3230/3, EN12266

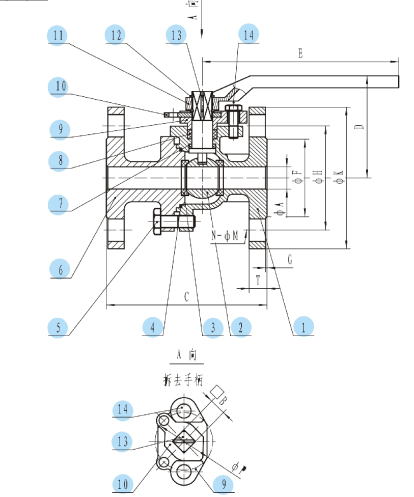

| DIMENSION TABLE | |||||||||||||||||||
| SIZE ITEM | A | B | D | E | C | PN10~PN16 | PN25~PN40 | ||||||||||||
| F | H | K | T | G | M | N | F | H | K | T | G | M | N | ||||||
| 1/2" | 15 | 11 | 73 | 130 | 115 | 45 | 65 | 95 | 14 | 2 | 14 | 4 | 45 | 65 | 95 | 14 | 2 | 14 | 4 |
| 3/4" | 20 | 11 | 76 | 130 | 120 | 58 | 75 | 105 | 16 | 2 | 14 | 4 | 58 | 75 | 105 | 16 | 2 | 14 | 4 |
| 1" | 25 | 14 | 86 | 160 | 125 | 68 | 85 | 115 | 18 | 2 | 14 | 4 | 68 | 85 | 115 | 18 | 2 | 14 | 4 |
| 1 1/4" | 32 | 14 | 91 | 160 | 130 | 78 | 100 | 140 | 18 | 2 | 18 | 4 | 78 | 100 | 140 | 18 | 2 | 18 | 4 |
| 1 1/2" | 38 | 17 | 119 | 200 | 140 | 88 | 110 | 150 | 18 | 3 | 18 | 4 | 88 | 110 | 150 | 18 | 3 | 18 | 4 |
| 2" | 50 | 17 | 127 | 200 | 150 | 102 | 125 | 165 | 18 | 3 | 18 | 4 | 102 | 125 | 165 | 20 | 3 | 18 | 4 |
| 2 1/2" | 65 | 17 | 136 | 200 | 170 | 122 | 145 | 185 | 18 | 3 | 18 | 4 | 122 | 145 | 185 | 22 | 3 | 18 | 8 |
| 3" | 76 | 22 | 164 | 325 | 180 | 138 | 160 | 200 | 20 | 3 | 18 | 8 | 138 | 160 | 200 | 24 | 3 | 18 | 8 |
| 4" | 94 | 22 | 178 | 325 | 190 | 158 | 180 | 180 | 20 | 3 | 18 | 8 | 162 | 190 | 235 | 24 | 3 | 22 | 8 |
<
| MATERIAL LIST | ||||||||||
| ITEM | DESCRIPTION | MATERIAL | ||||||||
| 1 | BODY | 1.4308/1.4408 | ||||||||
| 2 | BALL | 1.4308/1.4408 | ||||||||
| 3 | BALL SEAT | RPTFE | ||||||||
| 4 | BODY SEAL | PTFE | ||||||||
| 5 | BOLT | SUS304 | ||||||||
| 6 | CAP | 1.4308/1.4408 | ||||||||
| 7 | STEM SEAL | PTFE | ||||||||
| 8 | STEM PACKING | PTFE | ||||||||
| 9 | GLAND | 1.4308 | ||||||||
| 10 | STOPPER | SUS304 | ||||||||
| 11 | HANDLE | 1.4308 | ||||||||
| 12 | SNAP RING | SUS304 | ||||||||
| 13 | STEM | SUS304 | ||||||||
| 14 | BOLT | SUS304 | ||||||||
