Part#: B404MD

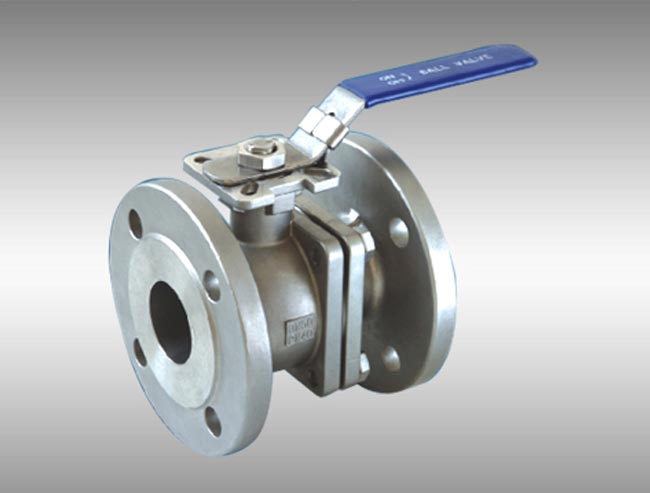

Product Name: 2-PC Flanged Ball Valve With Direct Mounting Pad(DIN)
Material: SS 304, SS 316
Coonection: Flange
Medium: Water, Oil & Gas
FEATURES:
DIN PN10-40
Full Port
Investment Casting
Blow-out Proof Stem
ISO5211 Mounting Pad
PED97/23/EC(CE0035)Approved
Casting Approved AD2000-W0
Design: DIN3357, EN12516
End Flange: DIN2543~2545, PN10-40
Face to Face: DIN3202-F4(DN15-DN100)
DIN3202-F5(DN125-DN150)
Inspection Testing: DIN3230/3, EN12266

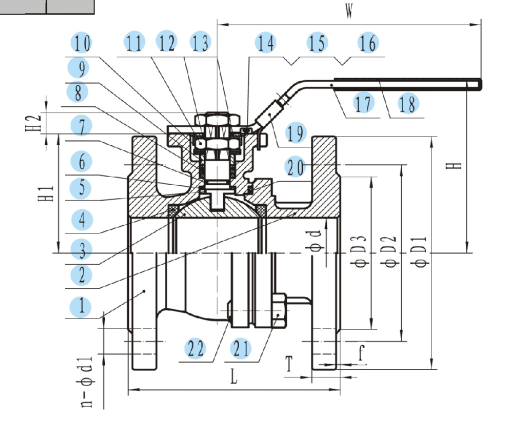

| DIMENSION TABLE | |||||||||||
| SIZE | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 | DN65 | DN80 | DN100 | DN125 | DN150 |
| PN | 10、16、25、40 | 10、16 | |||||||||
| φd | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 76 | 100 | 120 | 150 |
| L | 115 | 120 | 125 | 130 | 140 | 150 | 170 | 180 | 190 | 325 | 350 |
| T | 16 | 18 | 18 | 18 | 18 | 20 | 18 | 20 | 20 | 22 | 22 |
| f | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| D1 | 95 | 105 | 115 | 140 | 150 | 165 | 185 | 200 | 220 | 250 | 285 |
| D2 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 |
| D3 | 45 | 58 | 68 | 78 | 88 | 102 | 122 | 138 | 158 | 188 | 212 |
| n | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | 8 | 8 | 8 |
| φd1 | 14 | 14 | 14 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 22 |
| H1 | 48 | 53 | 58.5 | 71 | 76 | 76 | 84.5 | 101.5 | 141 | 160 | 184 |
| H2 | 9 | 9 | 11 | 11 | 14 | 14 | 17 | 17 | 22 | 40.5 | 40.5 |
| H | 80 | 85 | 95 | 108 | 114 | 124 | 148 | 158 | 189 | 242 | 270 |
| W | 140 | 140 | 160 | 160 | 185 | 185 | 230 | 230 | 320 | 500 | 800 |
| K | M12X1.5 | M12X1.5 | M14X1.5 | M14X1.5 | M18X1.5 | M18X1.5 | M22X1.5 | M22X1.5 | M28X2 | M36X2 | M36X2 |
| P | 9 | 9 | 11 | 11 | 14 | 14 | 17 | 17 | 22 | 27 | 27 |
| A1 | 3 | 3 | 3 | 3 | 3.5 | 3.5 | 4.5 | 4.5 | M12 | M12 | |
| A2 | 3 | 3 | 3.5 | 3.5 | 4.5 | 4.5 | 5.5 | 5.5 | M10 | ||
| B1 | 36 | 36 | 42 | 42 | 50 | 50 | 70 | 70 | 125 | 125 | |
| B2 | 42 | 42 | 50 | 50 | 70 | 70 | 102 | 102 | 102 | ||
| MATERIAL LIST | ||||||||||
| ITEM | DESCRIPTION | MATERIAL | ||||||||
| 1 | BODY | 1.4408/1.4308 | ||||||||
| 2 | CAP | 1.4408/1.4308 | ||||||||
| 3 | BALL | 1.4408/1.4308 | ||||||||
| 4 | BALL SEAT | RPTFE | ||||||||
| 5 | STEM | SUS304 | ||||||||
| 6 | STEM PACKING | PTFE | ||||||||
| 7 | O-RING | NBR | ||||||||
| 8 | V-RING PACKING | PTFE | ||||||||
| 9 | GLAND | SUS304 | ||||||||
| 10 | BELIEVILLE WASHER | SUS301 | ||||||||
| 11 | NUT | SUS304 | ||||||||
| 12 | THRUST WASHER | SUS304 | ||||||||
| 13 | WASHER | SUS304 | ||||||||
| 14 | STOP BOLT | SUS304 | ||||||||
| 15 | NUT | SUS304 | ||||||||
| 16 | WASHER | SUS304 | ||||||||
| 17 | HANDLE | SUS304 | ||||||||
| 18 | PALSTIC COVER | PLASTIC | ||||||||
| 19 | LOCKING | SUS304 | ||||||||
| 20 | BODY GASKET | PTFE | ||||||||
| 21 | NUT | SUS304 | ||||||||
| 22 | BOLT | SUS304 | ||||||||
| 23 | TRIANGLE STOPPER | SUS304 | ||||||||
| 24 | HANDLE ADAPTER | SUS304 | ||||||||
| 25 | SET SCREWED | SUS304 | ||||||||
| 26 | HANDLE | SUS304 | ||||||||
| 27 | PLASTIC COVER | PLASTIC | ||||||||
