Part#: B404J

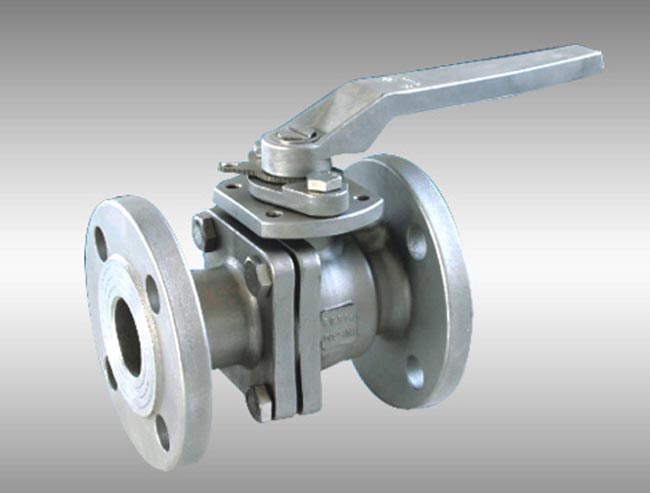

Product Name: 2-PC Flanged Ball Valve(JIS)
Material: SS 304, SS 316
Coonection: Flange
Medium: Water, Oil & Gas
FEATURES:
JIS 10K
Full Port
Investment Casting
Blow-out Proof Stem
ISO5211 Mounting Pad
PED97/23/EC(CE0035)Approved
Casting Approved AD2000-W0
Design: JIS B2002
End Flange: JIS B2238
Inspection Testing: JIS B2003, API598
<

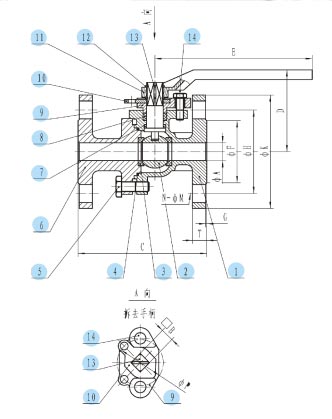

| DIMENSION TABLE | |||||||||||
| SIZE ITEM | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" | 4" |
| A | \ | \ | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 76 | 94 |
| B | \ | \ | 11 | 11 | 14 | 14 | 17 | 17 | 17 | 22 | 22 |
| D | \ | \ | 73 | 76 | 86 | 91 | 119 | 127 | 136 | 164 | 178 |
| E | \ | \ | 130 | 130 | 160 | 160 | 200 | 200 | 200 | 325 | 325 |
| P | \ | \ | 42 | 42 | 50 | 50 | 70 | 70 | 102 | 102 | 102 |
| F | \ | \ | 52 | 58 | 68 | 76 | 81 | 97 | 116 | 127 | 152 |
| H | \ | \ | 70 | 75 | 90 | 100 | 105 | 120 | 140 | 150 | 175 |
| K | \ | \ | 95 | 100 | 125 | 135 | 140 | 155 | 175 | 185 | 210 |
| T | \ | \ | 12.5 | 14.5 | 14 | 16 | 17.5 | 17.5 | 19 | 20 | 20 |
| G | \ | \ | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
| N | \ | \ | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | 8 |
| M | \ | \ | 15 | 15 | 19 | 19 | 19 | 19 | 19 | 19 | 19 |
| C | \ | \ | 108 | 117 | 127 | 140 | 165 | 178 | 190 | 203 | 229 |
| MATERIAL LIST | ||||||||||
| ITEM | DESCRIPTION | MATERIAL | ||||||||
| 1 | BODY | SCS13A/SCS14A | ||||||||
| 2 | BALL | SCS13A/SCS14A | ||||||||
| 3 | BALL SEAT | RPTFE | ||||||||
| 4 | BODY SEAL | PTFE | ||||||||
| 5 | BOLT | SUS304 | ||||||||
| 6 | CAP | SCS13A/SCS14A | ||||||||
| 7 | STEM SEAL | PTFE | ||||||||
| 8 | STEM PACKING | PTFE | ||||||||
| 9 | GLAND | SCS13A | ||||||||
| 10 | STOPPER | SUS304 | ||||||||
| 11 | HANDLE | SCS13A | ||||||||
| 12 | SNAP RING | SUS304 | ||||||||
| 13 | STEM | SUS304 | ||||||||
| 14 | BOLT | SUS304 | ||||||||
