Part#: G901

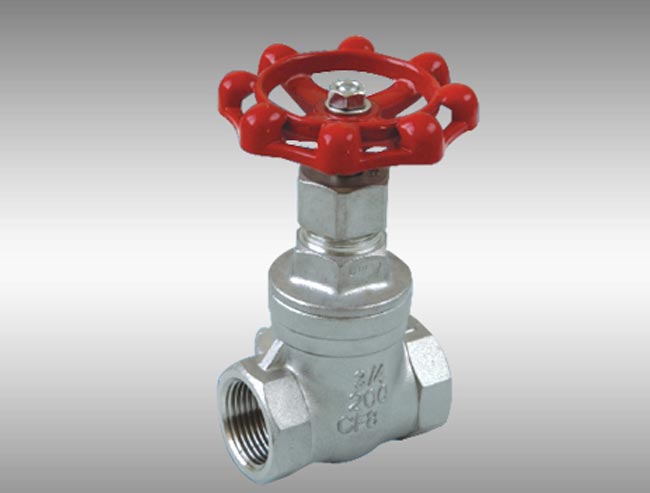

Product Name: Gate Valve
Material: SS 304, SS 316
Coonection: Thread
Medium: Water, Oil & Gas
FEATURES:
Working Pressure: 200PSI/PN16
Investment Casting
PED97/23/EC(CE0035)Approved
Casting Approved AD2000-W0
Thread: NPT, BSPT, DIN2999/259, ISO228-1
Inspection Testing: API598, EN12266
| DIMENSION TABLE | |||||||||||
| SIZE ITEM | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" | 4" |
| D | \ | \ | 15 | 20 | 25 | 32 | 40 | 50 | \ | \ | \ |
| H | \ | \ | 92 | 99 | 113 | 128 | 147 | 168 | \ | \ | \ |
| D1 | \ | \ | 70 | 70 | 80 | 80 | 100 | 100 | \ | \ | \ |
| L | \ | \ | 55 | 55 | 66 | 76 | 86 | 96 | \ | \ | \ |
| MATERIAL LIST | ||||||||||
| ITEM | DESCRIPTION | MATERIAL | ||||||||
| 1 | BODY | CF8/CF8M | ||||||||
| 2 | BONNET | CF8/CF8M | ||||||||
| 3 | STOP RING | SUS304 | ||||||||
| 4 | STEM | SUS304 | ||||||||
| 5 | PACKING | PTFE | ||||||||
| 6 | HANDWHEEL NUT | SUS304 | ||||||||
| 7 | HANDWHEEL | ALUMINUM ALLOY | ||||||||
| 8 | PACKING NUT | SUS304 | ||||||||
| 9 | RING | SUS304 | ||||||||
| 10 | LOCK NUT | SUS304 | ||||||||
| 11 | GASKET | PTFE | ||||||||
| 12 | DISC | CF8/CF8M | ||||||||
