Part#: B501M

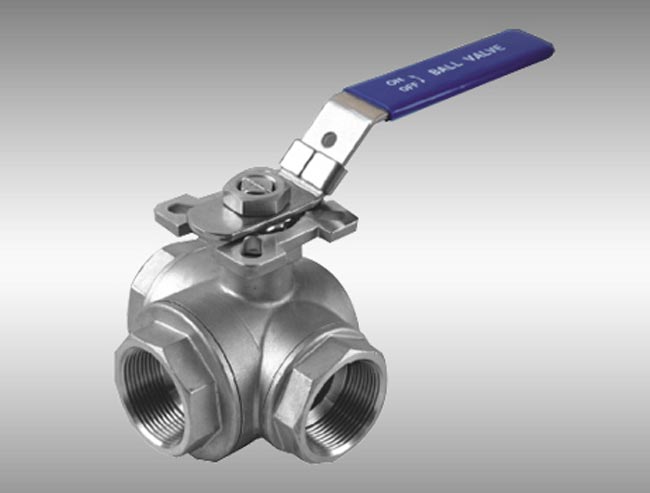

Product Name: Three-Way Ball Valve With Direct Mounting Pad
Material: SS 304, SS 316
Coonection: Thread
Medium: Water, Oil & Gas
FEATURES:
Working Pressure: 1000PSI/PN63
Reduce Port
Investment Casting
Blow-out Proof Stem
ISO5211 Mounting Pad
PED97/23/EC(CE0035)Approved
Casting Approved AD2000-W0

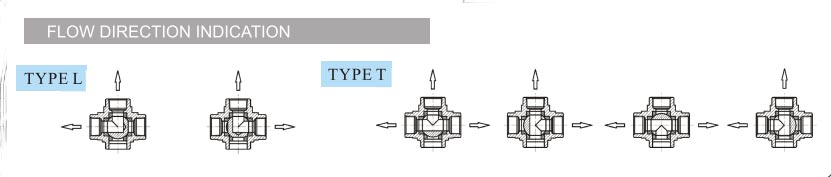

L or T Port Option
4 Seats For Rigid Ball Supporting
Thread: NPT, BSPT, DIN2999/259, ISO228-1
Inspection Testing: API598, EN12266

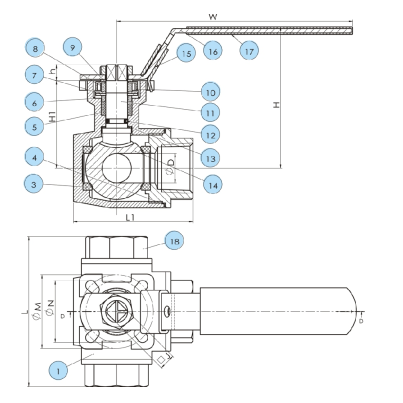

| DIMENSION TABLE | ||||||||
| SIZE ITEM | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" |
| D | 9 | 11 | 12.5 | 16 | 20 | 25 | 32 | 38 |
| W | 139 | 139 | 139 | 139 | 160 | 160 | 185 | 185 |
| H | 73 | 73 | 73 | 80 | 95 | 98 | 110 | 119 |
| H1 | 42 | 42 | 42 | 49 | 59.5 | 63 | 73.5 | 82.8 |
| h | 9 | 9 | 9 | 9 | 11 | 11 | 14 | 14 |
| M | 36 | 36 | 36 | 36 | 42 | 42 | 50 | 50 |
| N | 42 | 42 | 42 | 42 | 50 | 50 | 70 | 70 |
| J | 9 | 9 | 9 | 9 | 11 | 11 | 14 | 14 |
| L | 79 | 79 | 79 | 83 | 104 | 111 | 126 | 147 |
| L1 | 64 | 64 | 64 | 68 | 82 | 90 | 106 | 123 |
| MATERIAL LIST | ||||||||||
| ITEM | DESCRIPTION | MATERIAL | ||||||||
| 1 | BODY | CF8/CF8M | ||||||||
| 2 | CAP(A) | CF8/CF8M | ||||||||
| 3 | BALL SEAT | RPTFE | ||||||||
| 4 | BODY PACKING | PTFE | ||||||||
| 5 | STEM PACKING | PTFE | ||||||||
| 6 | GLAND NUT | SUS304 | ||||||||
| 7 | SPRING WASHER | SUS301 | ||||||||
| 8 | NUT | SUS304 | ||||||||
| 9 | WASHER | SUS304 | ||||||||
| 10 | THRUST WASHER | SUS304 | ||||||||
| 11 | STEM | SUS304 | ||||||||
| 12 | O-RING | NBR | ||||||||
| 13 | STEM SEAL | PTFE | ||||||||
| 14 | BALL | CF8/CF8M | ||||||||
| 15 | LOCKING | SUS304 | ||||||||
| 16 | HANDLE | SUS304 | ||||||||
| 17 | PLASTIC COVER | PLASTIC | ||||||||
| 18 | CAP(B) | CF8/CF8M | ||||||||
